CB&Q FT-F2 Set Part 2

-



The EMD F2 was a transition model and introduced the general architecture that carried on through the remainder of F-unit production all the way to the F9 of the mid 1950’s. Offered only for 5 months at the end of 1946, the F2 sported a revised carbody and improvements to the arrangement of internal components compared to the FT. Belt-driven radiator fans and traction motor blowers were replaced with electrically driven ones. The F2 used the same D8 main generator as the FT, which limited power output to the same 1,350hp. Development of a new generator coincided with the beginning of F3 production in December 1946.


The Burlington’s 10 F2As were delivered in July 1946. They were ordered specifically to pair with FTA/B sets to make 3-unit 4050hp locomotives for use on trains where 4-unit sets were overpowered. Since the Burlington considered each set a single locomotive, road numbers were shared across the sets with letter suffixes to distinguish each unit (e.g. 150-A, -B, & -C).

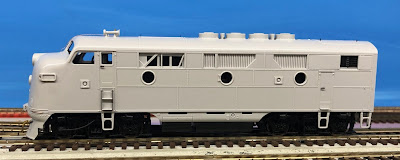

To my knowledge, no factory painted models of a CB&Q F2 exist. It is possible, however, to make a very accurate and detailed model using a Highliners shell kit. Highliners shells are very cleverly designed to allow an accurate representation of any F unit from F2 through F9. There are modular inserts for each cooling fan, body panel, and dynamic brake variation. I followed the provided instructions to build mine as an F2 with dual headlights and small number boards. I also added handrails, nose grab irons, lift rings, and etched metal grill details.


The chassis came from a donor Proto 1000 F3 that I bought second-hand. In hindsight, another manufacturers’ F-units chassis may have caused less work. The mechanism was smooth and quiet, but some internal projections on the nose of the Highliners shell prevented it from sliding completely over the chassis weight. I used a Dremel tool to grind away a small part of the weight until there was no interference.

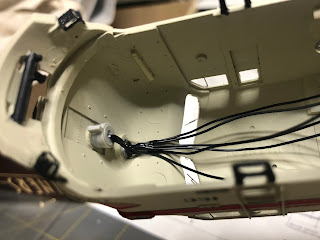

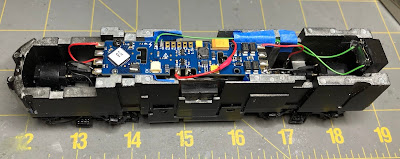

I hardwired a Tsunami 2 decoder with sugar cube speaker, same as on the corresponding FT A-unit. The Highliners shell comes with a few varieties of headlight inserts to match any prototype. The Burlington F2s had a single bulb in the lower headlight and red & white pair of bulbs in the upper Mars light. I used grain of rice bulbs, as they fit the inserts better than LEDs.






I painted the shell with the same SCL Hopper Car Beige / Light Gray mixture that I made to touch up the FT details. Decals were straight from a Microscale set. To avoid the difficulty of wrapping the red stripe decals around the number boards, I painted those parts red instead, keeping only the black boarder of the decals.

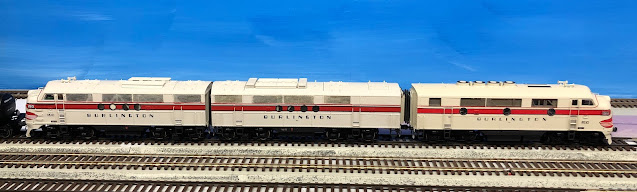

Finally I put the F2 together with the FT and speed-matched the decoders. The set was now ready for service.
